2196 ANSI DIMENSIONAL MODEL

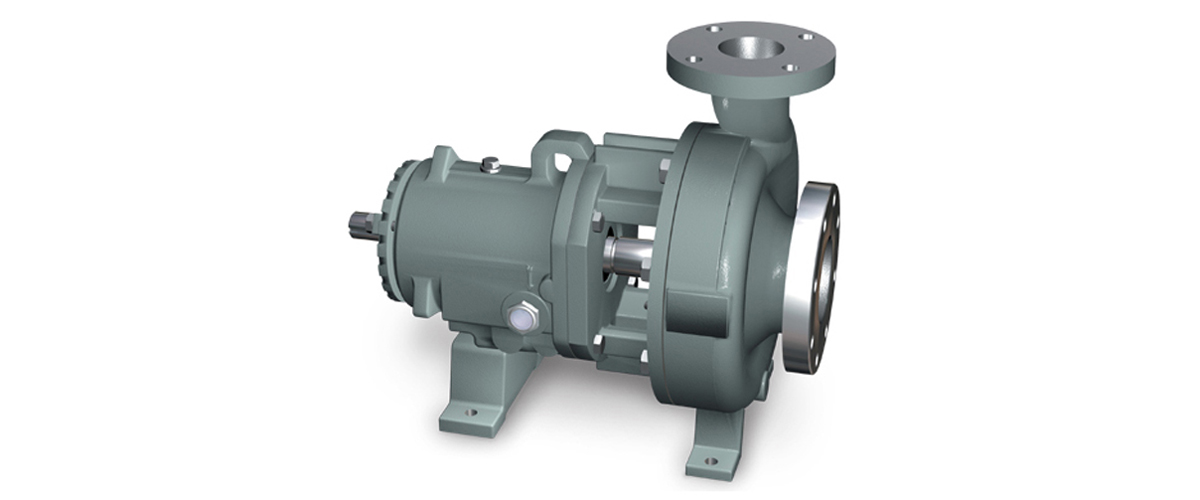

SUMMIT - 2196 ANSI DIMENSIONAL MODEL

  • Capacities to 6000 gpm
  • Heads to 730 feet
  • Pressures to 375 psi
  • Temperatures to 700 degrees F
  • Back pull out design
  • External impeller adjustment
  • Maximum interchangeability
  • Standard bronze Inpro® labyrinth seals
  • Heavy duty shaft & bearings
  • Rigid frame foot
  • Fully open impeller
  • Extra large oil sump

Brochure PDF

To Order Consult your Advanced Fluid Systems Representative

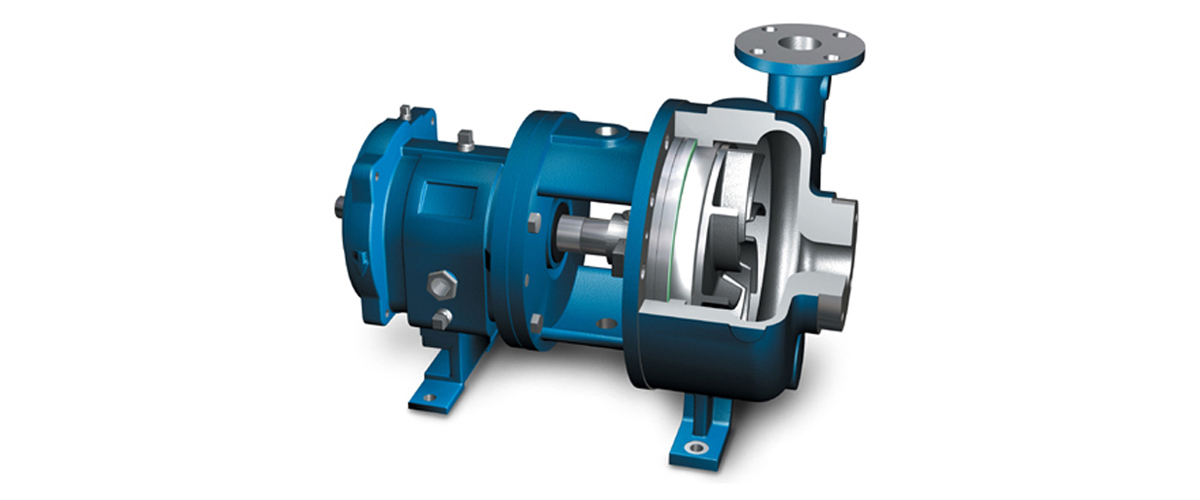

SUMMIT - 2196 LOW FLOW HIGH HEAD PUMP

  • Radial vane impeller with balance holes
  • Interchangeability with existing ANSI pumps
  • Circular non-expanding case

Brochure PDF

To Order Consult your Advanced Fluid Systems Representative


SUMMIT - 296R

Utilizes your existing 2196 power end and ANSI bolt pattern.

  • Handles fibrous and shear sensitive materials
  • Minimizes degradation of solids
  • Available in 5 different sizes and a variety of materials

To Order Consult your Advanced Fluid Systems Representative

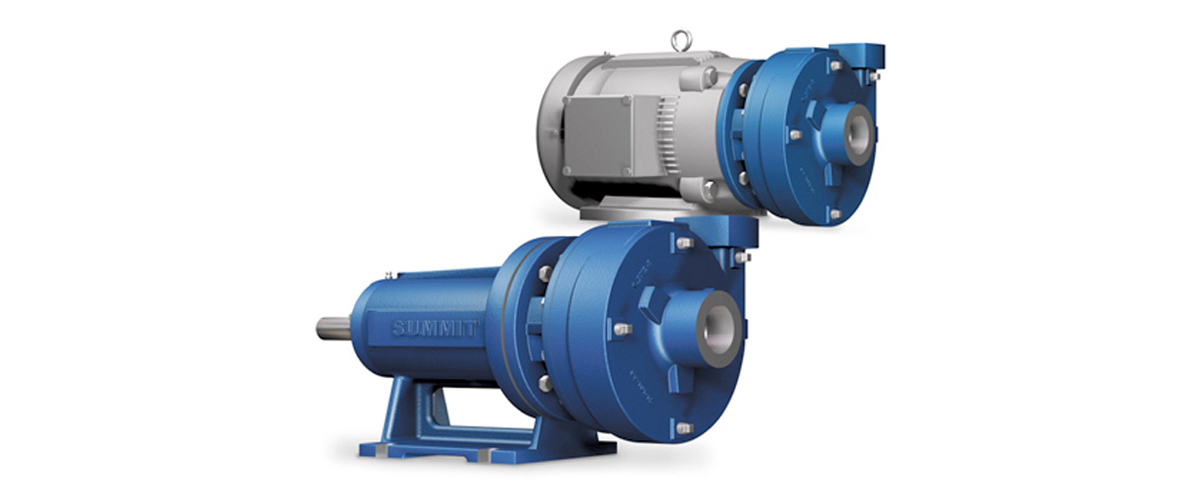

SUMMIT - CLOSE COUPLED/FRAME MOUNTED

  • Summit CC & FM pumps are horizontal, end suction, centrifugal pumps designed for general service such as water, solvents, light oils, non-corrosive chemicals, coolants and brines.
  • Available in capacities to 2300 GPM and heads to 200 feet, these pumps are an economical and dependable solution for your pumping needs.
  • All flanges are 125lb ANSI B16.1 rating, NPT connections are standard on 6" and 8" sizes.
  • A renewable bronze shaft sleeve is standard on cast iron pumps, and a 316SS shaft sleeve is standard on alloy pumps.
  • Close Coupled Pump - Model CC is directly mounted to a NEMA "C" face motor, and designed to use minimal space.
  • Frame Mounted Pump - Model FM - are constructed with a rigid bearing frame, flexibly coupled, and mounted on a fabricated steel base with optional drip pan.
  • Interchangeable Parts: Component parts, of similar sizes, are interchangeable between frame mounted and close coupled pumps.

Brochure PDF

To Order Consult your Advanced Fluid Systems Representative

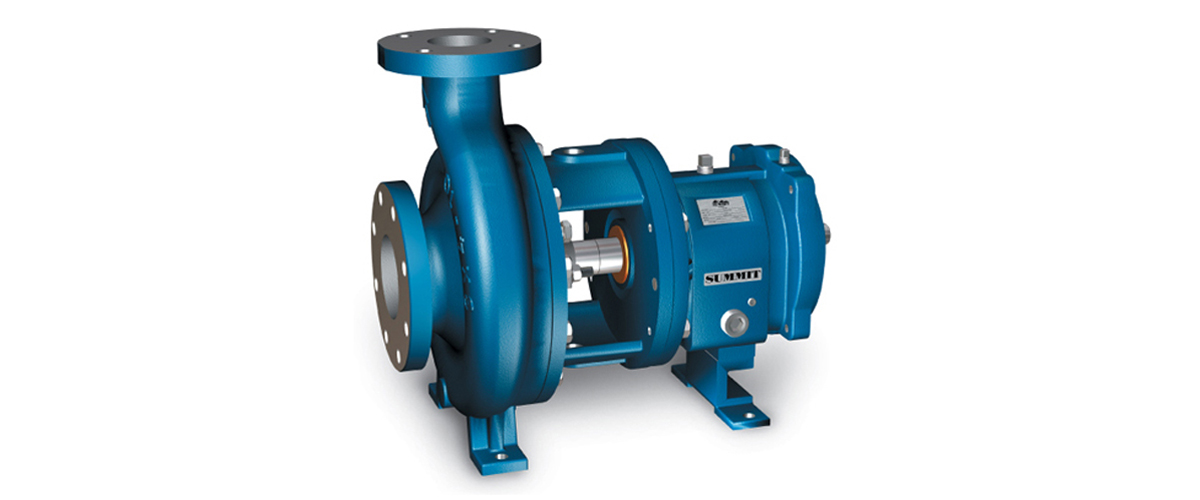

SUMMIT - MODEL CLARK III

  • Conforms to ASME B73.1M (ANSI)
  • Semi-open reverse vane impeller
  • Capacities to 5,000 GPM
  • Head to 740 feet
  • Pressures to 375 PSI
  • Back pull out design
  • Indexed bearing housing for ease and accurate
  • mpeller adjustment
  • Maximum interchangeability of parts

Brochure PDF

To Order Consult your Advanced Fluid Systems Representative

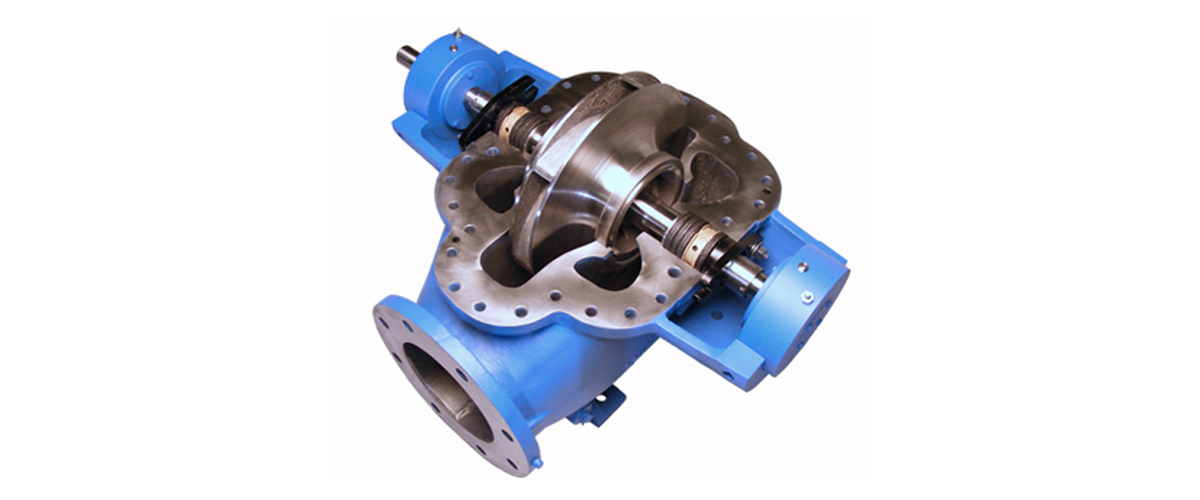

SUMMIT - DSR / DSN

  • Capacities to 6,000 GPM
  • Heads to 430 feet
  • Horizontal split case design
  • High efficiency and low NSPHr
  • Closed Impeller

To Order Consult your Advanced Fluid Systems Representative

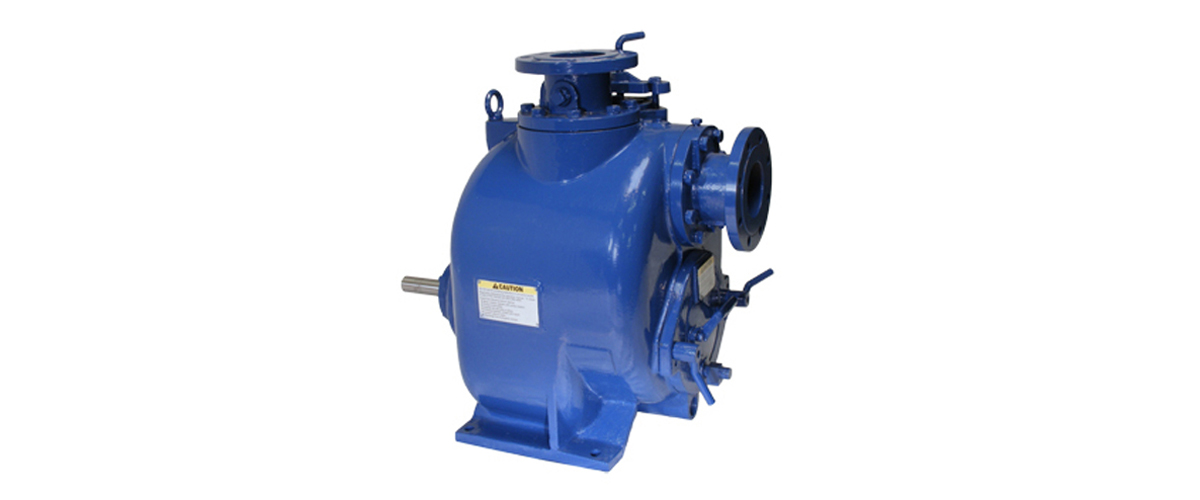

SUMMIT - SN - SELF PRIMING, NON-CLOGGING PUMPS

  • Self Priming
  • Capacities to 3,400 gpm
  • Temperatures to 160 degrees F
  • Back pull out design
  • Direct drive or V-belt
  • Non clogging
  • Hard faced mechanical seals standard
  • Standard spool piece flanges

Brochure PDF

To Order Consult your Advanced Fluid Systems Representative

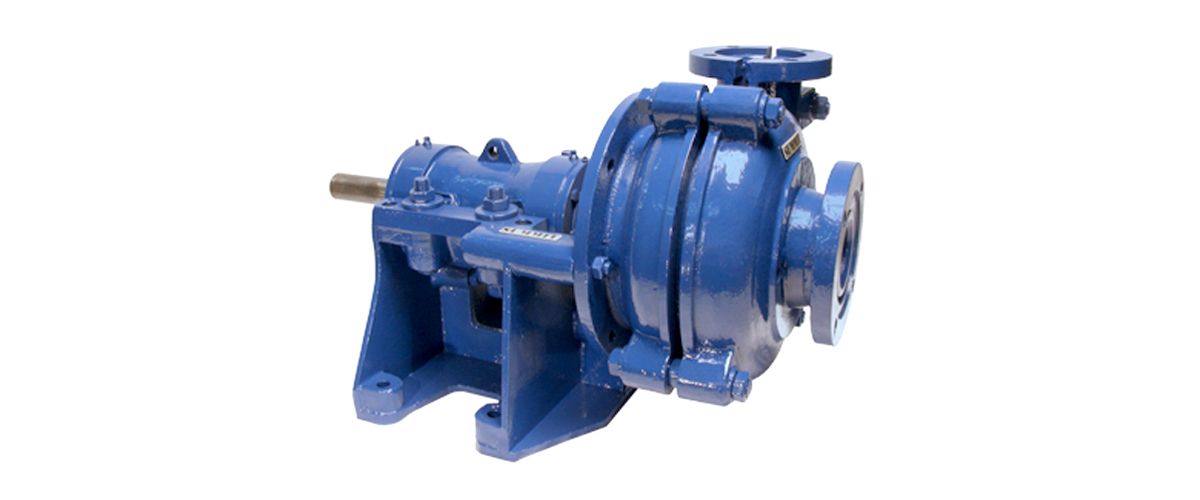

SUMMIT - SP

  • Heavy Duty Slurry Pumps
  • High Chrome or Rubber Removable Wear Parts
  • Corrosion and Abrasion Resistant Design
  • Packed Box Standard

To Order Consult your Advanced Fluid Systems Representative
